Portable Mini 30W 50W Fiber/CO2/3W 5W UV Laser Marking Machine/Laser Printer/3D Logo Printing Machine/Laser Engraving Machine for Metal/Jewelry/Plastic/Glass

Portable Mini 30W 50W Fiber/CO2/3W 5W UV Laser Marking Machine/Laser Printer/3D Logo Printing Machine/Laser Engraving Machine for Metal/Jewelry/Plastic/Glass

Fiber/CO2/UV Laser Marking Machine 3D Printing/Laser Marker/Engraving Equipment/ogo Printing Machine Laser Etching Codin;
Basic Info.
Model NO. HJZ-DB-04
Laser Wavelength Fiber Laser
Laser Classification Fiber Laser
Type Optical Fiber Laser Marking Machine
Marking Method Scanning Marking
Process Material Metal and Some Non-Metal
Delivery Time 1-3days
Application Material 0.1-2mm
Control Software Ezcad Software
Name 30W Metal Engraving Machine
Lifespan Over 20, 000hours
Laser Source Raycus, Max, Ipg, Jpt
Engraving Speed 9000mm/S
Operating Voltage 110-240V
Laser Output Power 20W, 30W, 50W
Certification CE.SGS
Condition New
Marking Area 110*110mm, 175*175mm, 220*220mm, 300*300mm
Graphic Format Supported Ai, BMP, Dst, Dwg, Dxf, Dxp
Transport Package Standard Plywood Packing for Export
Specification 650*300*700mm
Trademark HJZ Laser
Origin Wuhan, China
HS Code 84561000
Production Capacity 500 Sets/Month
Product Description
Fiber/CO2/UV Laser Marking Machine 3D Printing/Laser Marker/Engraving Equipment/ogo Printing Machine Laser Etching Coding Machine for Metal/Plastic/Wood

Portable Mini 30W 50W Fiber/CO2/3W 5W UV Laser Marking Machine/Laser Printer/3D Logo Printing Machine/Laser Engraving Machine for Metal/Jewelry/Plastic/Glass


Portable Mini 30W 50W Fiber/CO2/3W 5W UV Laser Marking Machine/Laser Printer/3D Logo Printing Machine/Laser Engraving Machine for Metal/Jewelry/Plastic/Glass

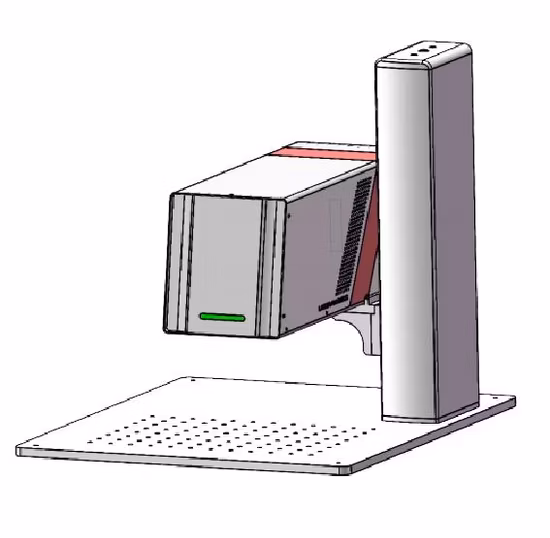

Machines inside Layout

Fiber Laser Marking Machine - Main Features:

  • Laser Source: Raycus / JPT / IPG / MAX brand.
  • Control Card: Original EZCAD 2.14.9 / EZCAD 3 version.
  • Laser Power: 20w 30w 50w 60w 70w100w.
  • Marking Area: 110*110mm / 150*150mm/ 175*175mm/200*200mm/300*300mm.
  • Galvo Head: Sino-galvo JD2206 / 3D Feeltek / 3D JCZ.
  • Column Stand: Manual / Electric , 50cm / 68cm / 80cm.
  • Optional Rotary Fixture: 50mm, 69mm, 80mm, 100mm, 120mm, 160mm, 200mm etc.
  • Cyclops Camera optional: Camera can automatic recognize the marking position.
  • More optional Parts: Conveyor table / Vacuum system / Electric XY table.

Portable Mini 30W 50W Fiber/CO2/3W 5W UV Laser Marking Machine/Laser Printer/3D Logo Printing Machine/Laser Engraving Machine for Metal/Jewelry/Plastic/Glass


Portable Mini 30W 50W Fiber/CO2/3W 5W UV Laser Marking Machine/Laser Printer/3D Logo Printing Machine/Laser Engraving Machine for Metal/Jewelry/Plastic/Glass


Technical Data :

Technical parameter

Item / Model

HJZ -DB-04 (20/30/50/60/70/100W)

Laser source

Domestic Raycus(Germany IPG/China Raycus/MAX/JPT Mopa color marking for optional)

Laser power

20w, 30w, 50w,60w ,70w,100w

Laser type

Fiber laser

Graphic Format Supported

PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,

DXF

Marking speed

≤9000mm/S

Max.Marking Depth

≤0.4mm

Laser Wavelength

1064nm

Marking lines

1-10 marking lines(in the marking area)

Minimum line width

0.01mm

Minimum character

0.15mm

Resolution ratio

0.01mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

CorelDraw, Photoshop, AutoCAD

Equipment Dimensions

420*320*800mm

Net Weight:4

50KGS / 90KGS

(different model has different weight,detailed can be confirmed with sellers)

Unit Power

≤500W

Optional Spare Parts

Rotary/Protection glasses/outside red light/night light and so on.

Portable Mini 30W 50W Fiber/CO2/3W 5W UV Laser Marking Machine/Laser Printer/3D Logo Printing Machine/Laser Engraving Machine for Metal/Jewelry/Plastic/Glass
