1500W 2000W 3000W Automatic Prismatic Lithium Battery Pack Aluminum Nickel Busbar Fiber Continuous Laser Welding Machine Welder

1500W 2000W 3000W Automatic Prismatic Lithium Battery Pack Aluminum Nickel Busbar Fiber Continuous Laser Welding Machine Welder

3000W Galvanometer laser welding machine for power battery Connecting piece busbar explosion-proof valve Continuous fibe;
Basic Info.
Model NO. 3HE-MF3000W
Laser Classification Optical Fiber Laser
Type Automatic Laser Welding Machine
Adjustable Facula Size 0.2-3mm
Laser Head Wobble Head
Colling Method Water Cooling
Laser Wavelength 1080nm
Cooling Water Cooling
Robot China
Laser Source Ipg Raycus Max
Computer PLC DELL
Aiming and Positioning CCD and Red Right
Electrical Reuqirement 380V+(-)10%/50Hz/60A
Maximum Laser Power 2000W
Laser Material Fiber Continuous Laser
Host System Dimension 1500*700*1000mm
Machine Power Consumeption 10kw-12kw
Machine Model 3he-Mf3000W
Transport Package Carton
Specification CE
Trademark SanHe
Origin Dongguan Guangdong
HS Code 8515809090
Production Capacity 200set/Month
Product Description

3000W Galvanometer laser welding machine for power battery Connecting piece busbar explosion-proof valve

Continuous fiber laser welding VS Yag pulse laser welding:
1. The fiber continuous laser welding machine uses 500W-2000W laser, the laser has a long service lifeand the service life can reach 100,000 hours.2. The electro-optic conversion efficiency is high, and the energy of the power shaving is 25%-30% converted into laser, and the fiber conversion rate is more than 10 times that of the YAG laser.3. The whole machine has no consumables. YAG pulse welding machine should replace the xenon lamp and lens regularly.4. The whole machine has low energy consumption, saves electricity, high stability, maintenance-free, and low cost of use.5. The laser welding energy density is high, welding speed is four times that of YAG pulse.the weld seam is thin,the thermal deformation is small, and the heat affected zone is narrow and deep.6. Optical fiber output, easy to match with automated workbench or robot to improve production efficiency,and can meet 24 hours of continuous work.7. Customizable large workbench and XYZ axis travel.

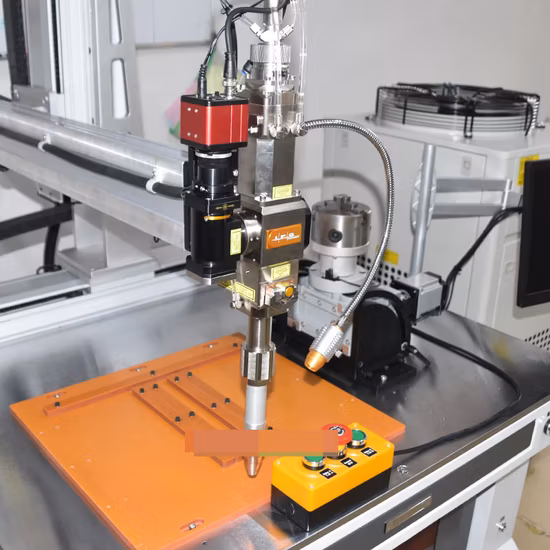

1500W 2000W 3000W Automatic Prismatic Lithium Battery Pack Aluminum Nickel Busbar Fiber Continuous Laser Welding Machine Welder


Principle:
The fiber continuous welding machine is a high-end, new type of welding method.It is generally composed of a "welding mainframe" and a "welding workbench".The laser beam is coupled to the optical fiber, and after being transmitted over a long distance,it is processed into parallel light. Focusing on the workpiece to perform continuous welding,the welding effect is stronger due to the continuity of the light output, and the weld seam ismore fine and beautiful. According to the different needs of different industries, the equipmentcan meet the needs of users in different industries according to the matching shape and workbenchon the production site and the automation work.
Technical parameters:

Model3HE-MF500W3HE-MF750w3HE-MF1000w3HE-MF1500w3HE-MF/2500w
Optical Parameters
Work ModelContinuous/ Modulation
Max Power(W)500750100015002500
Wavelength(nm)1080
Repetitive Rate(Hz)0-5000500-50000-5000
Pluse Width(ms)0.05-500.05-0.60.05-50
Output Power Stability<2%
Red Lightyes
Output ConnectorQBH Customizable)
Fiber Core Diameter25,50,100,Optional50,100,200, optional
BBP(mm. mrad)0.4,2,52,5,10
Input Voltage([email protected]200-240, Single- phase340-420,Three- Phase-Five-Wire
Cooling wayWater Cooling
Operating Temperature(ºC)10-40
Power consumption(kw)<4<5<7<8 <9
Control ModelExternal RS232/ External AD
Power Adjustment(%)10-100

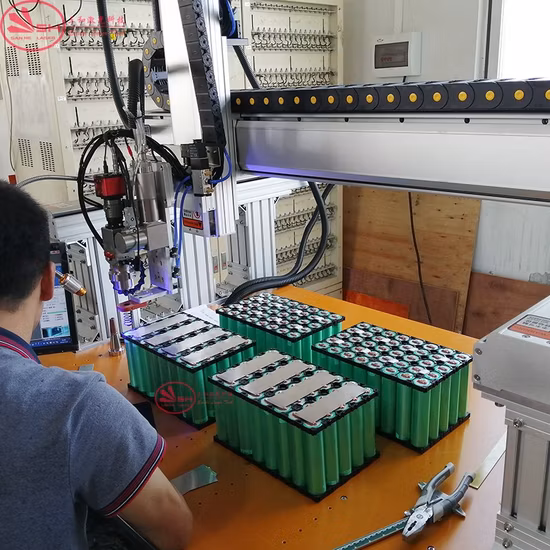

1500W 2000W 3000W Automatic Prismatic Lithium Battery Pack Aluminum Nickel Busbar Fiber Continuous Laser Welding Machine Welder

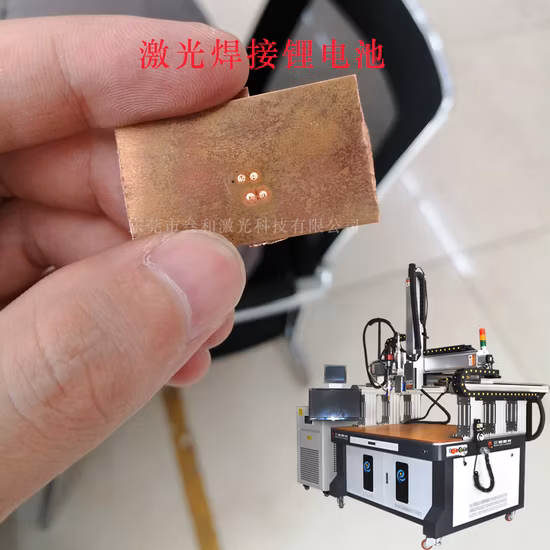

1500W 2000W 3000W Automatic Prismatic Lithium Battery Pack Aluminum Nickel Busbar Fiber Continuous Laser Welding Machine Welder

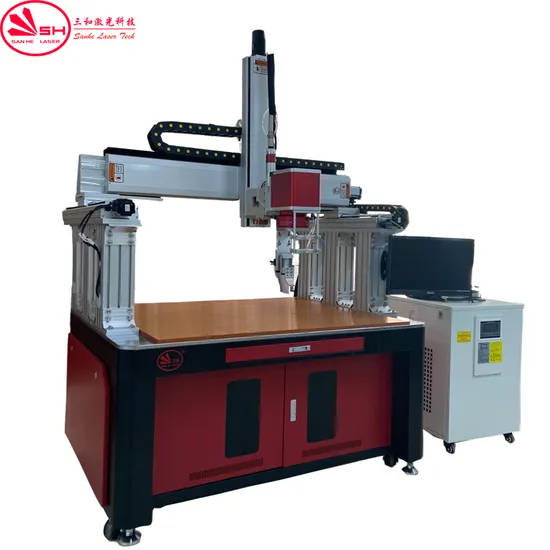

1500W 2000W 3000W Automatic Prismatic Lithium Battery Pack Aluminum Nickel Busbar Fiber Continuous Laser Welding Machine Welder

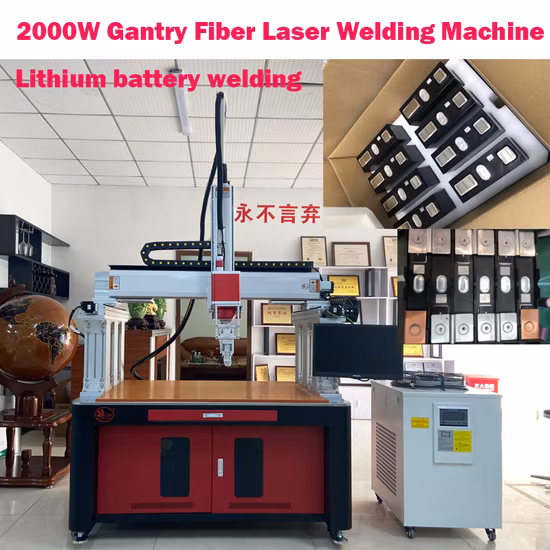

1500W 2000W 3000W Automatic Prismatic Lithium Battery Pack Aluminum Nickel Busbar Fiber Continuous Laser Welding Machine Welder
